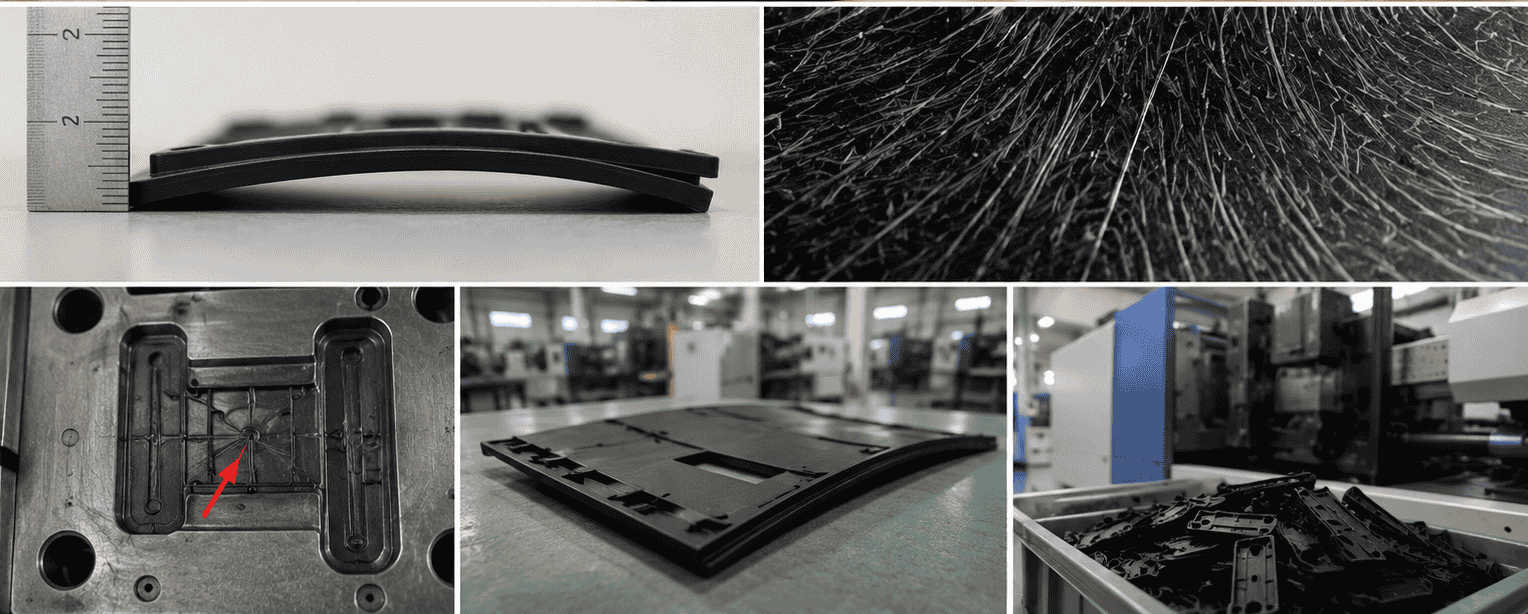

What these four causes share is that none of them are visible in a static CAD model. Wall thickness transitions are visible, but their cooling consequence is not. Fiber orientation doesn’t exist until the resin is actually flowing. Gate location is usually finalized by the toolmaker, downstream of design review. Cooling channel layout is a tooling decision made after the part geometry is already frozen. A design review that only looks at the model, however carefully, is checking a file that has no representation of any of these behaviors.

This is why warpage so often surfaces as a first-article surprise rather than a design-review flag. The part that fails flatness at first shot was, by every measure available during CAD review, correct. The information that would have predicted the warp, fill direction, shrinkage gradient, cooling balance, only exists in a flow and cooling simulation, a step that gets skipped when a program is moving fast and the design already looks finished.

Moldflow-class simulation exists specifically to close this gap, modeling fill pattern, packing pressure distribution, fiber orientation, and cooling rate across the actual geometry before steel is cut. What we see across programs at PrintForm is that the warp problems caught in simulation cost a design review. The ones caught at first article cost a mold rework and a schedule delay. The ones caught in production cost a field failure and a re-tool, often on a part where the original CAD dimensions were never wrong at all.
